June was a very productive month, though I did not get as much done as I hoped, some major milestones have been knocked off the list including the engine assembled and the interior finished!

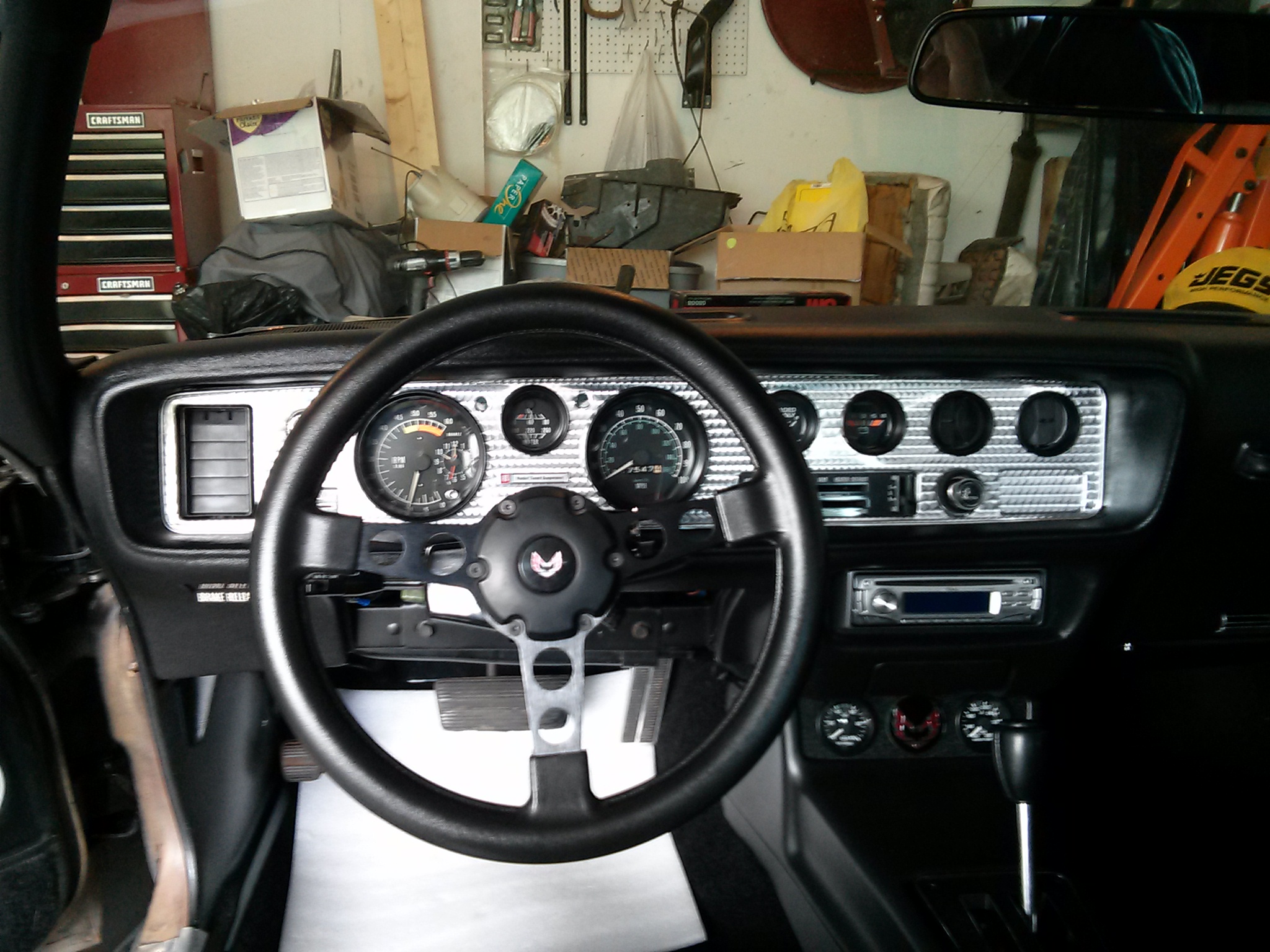

Interior Done
Well I shouldn’t say it is completely done, but it is done for now. I will have to go back and permanently hang the door panels, I am waiting to do that until after I get the power windows, door locks tested and working, and the drivers door is going to be replaced as soon as I find a good replacement for it. At this point though, the interior is done as far as being able to drive and such.
Melanie and Nicholas love playing in the car, and they both have figured out the seat belts!
Engine is Done! But not without a fight!

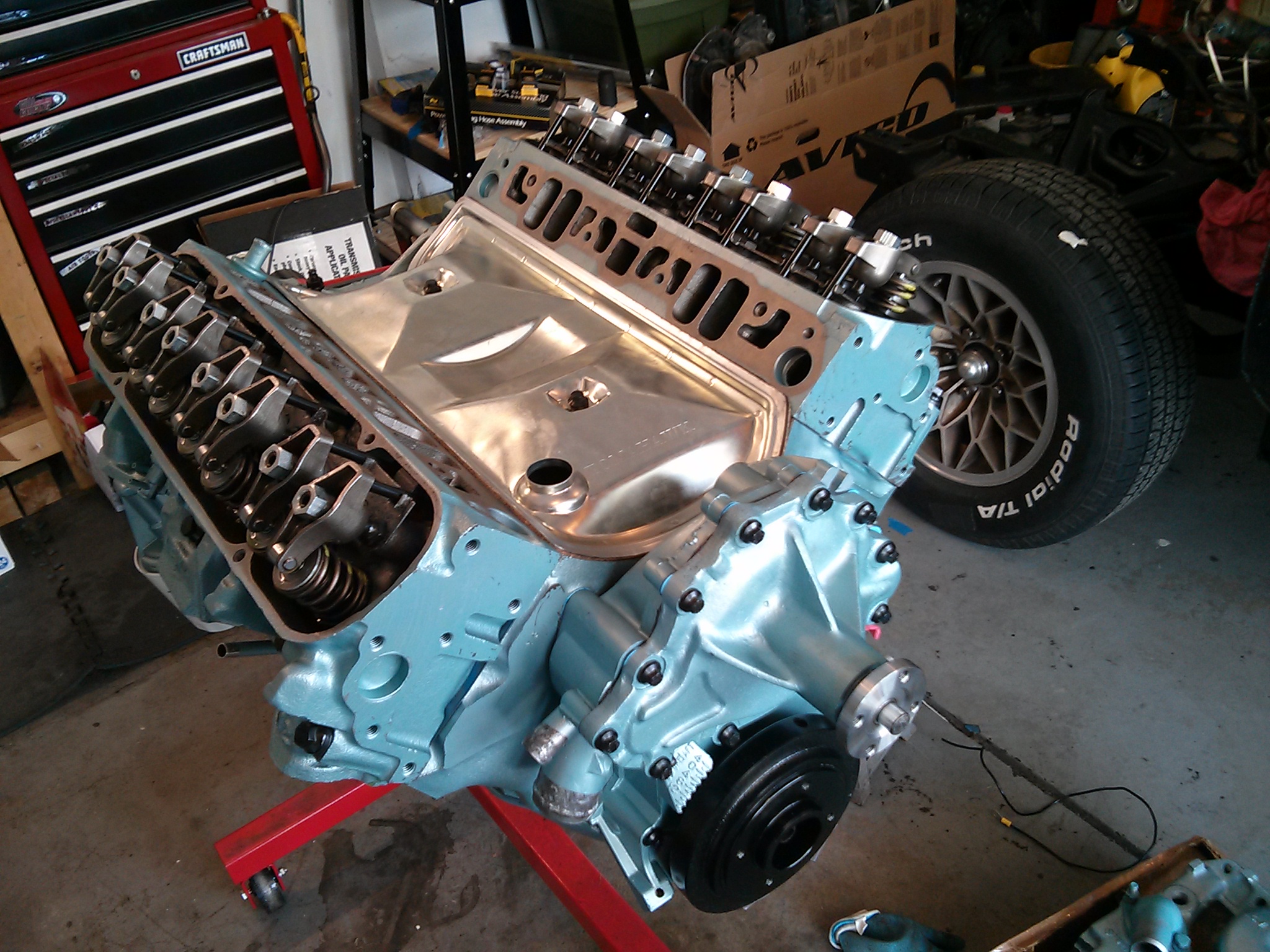

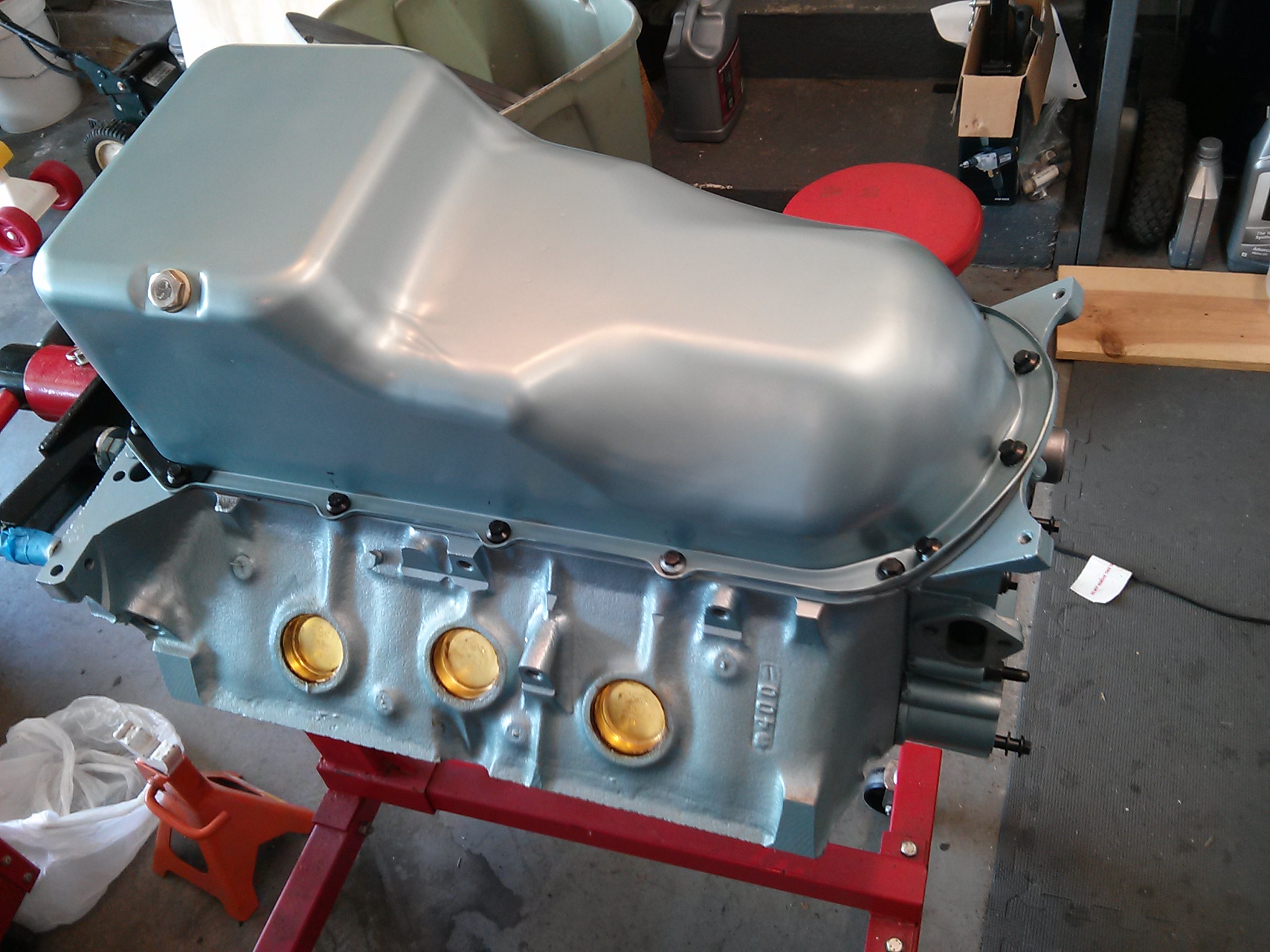

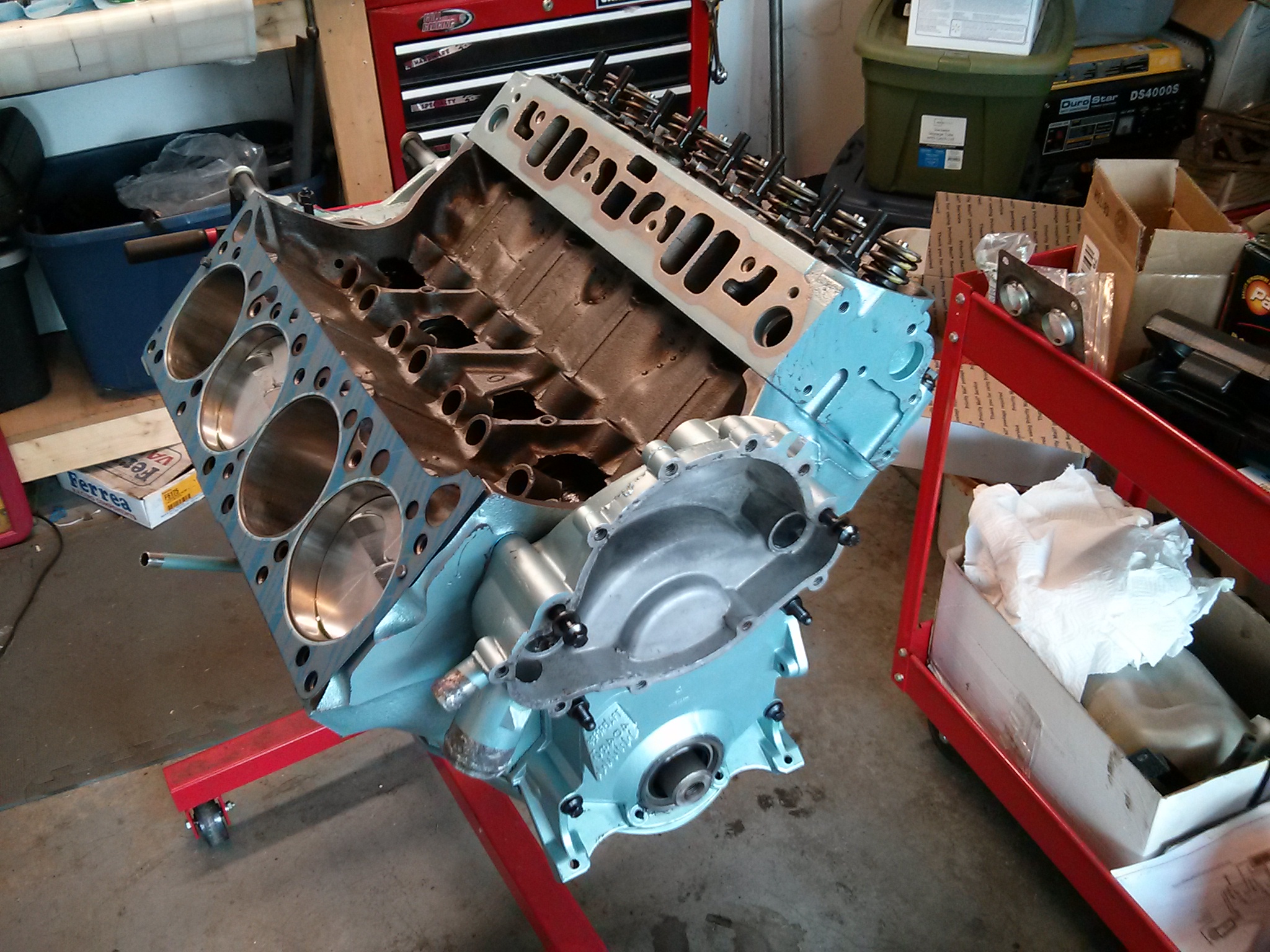

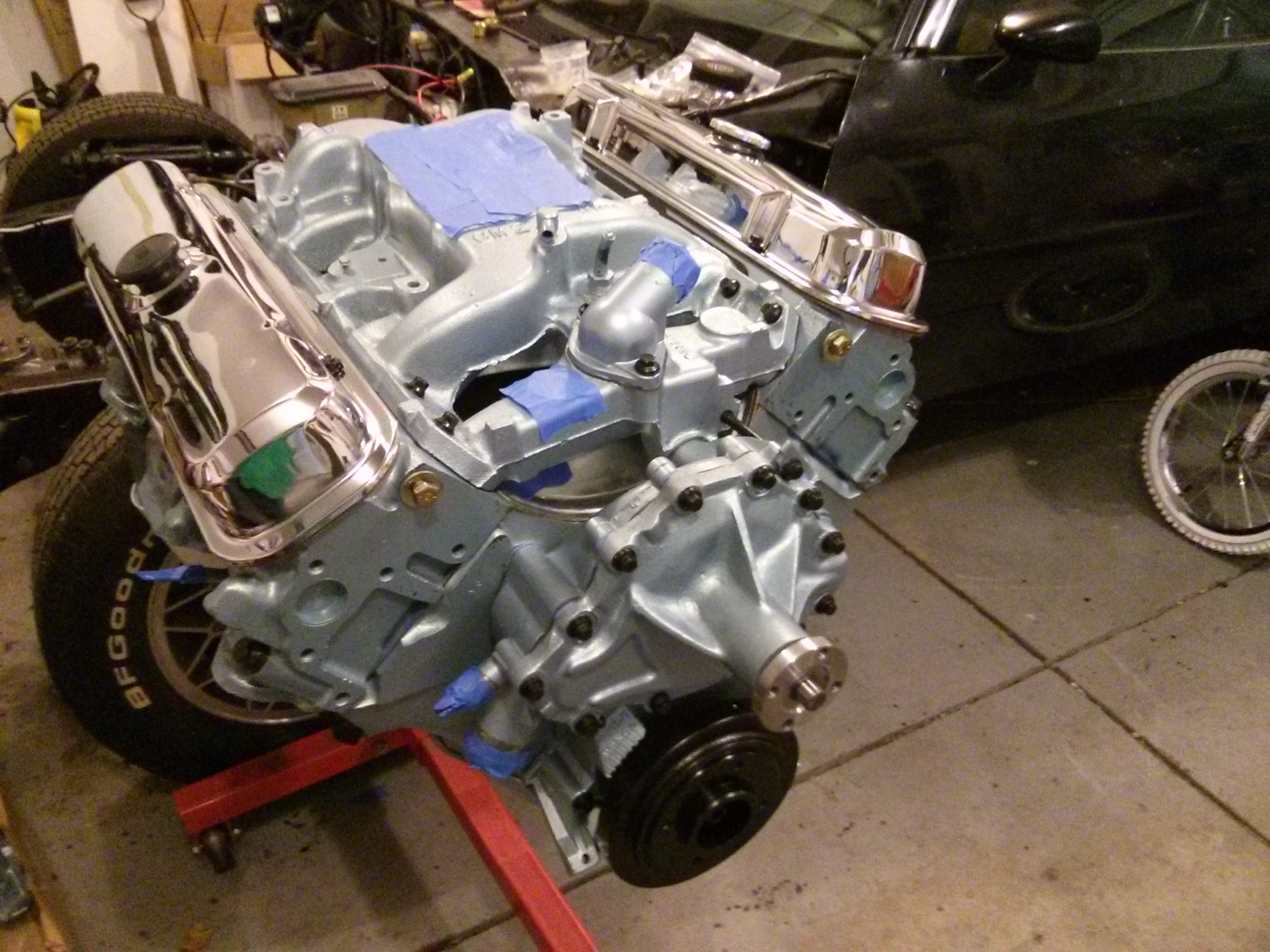

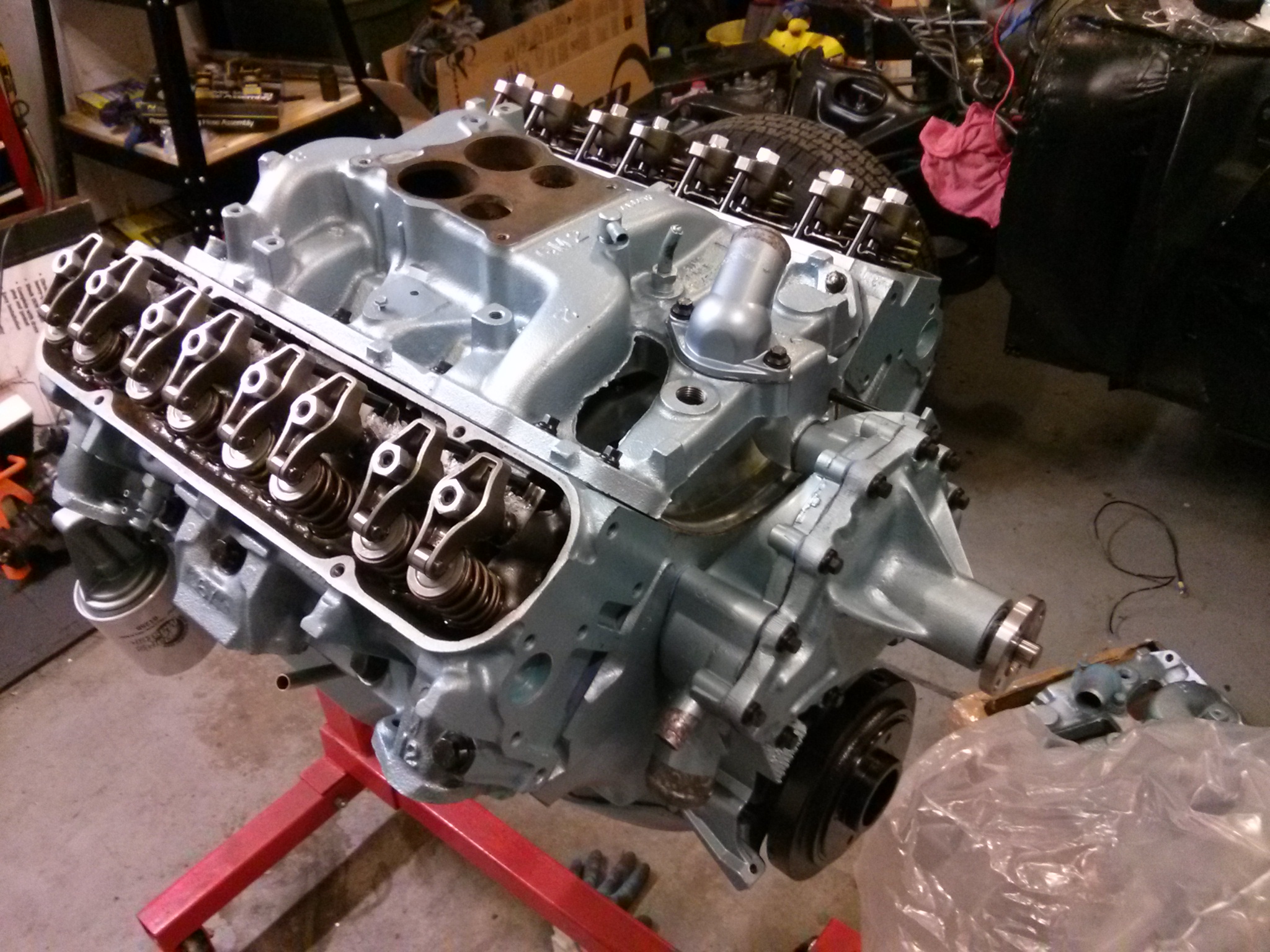

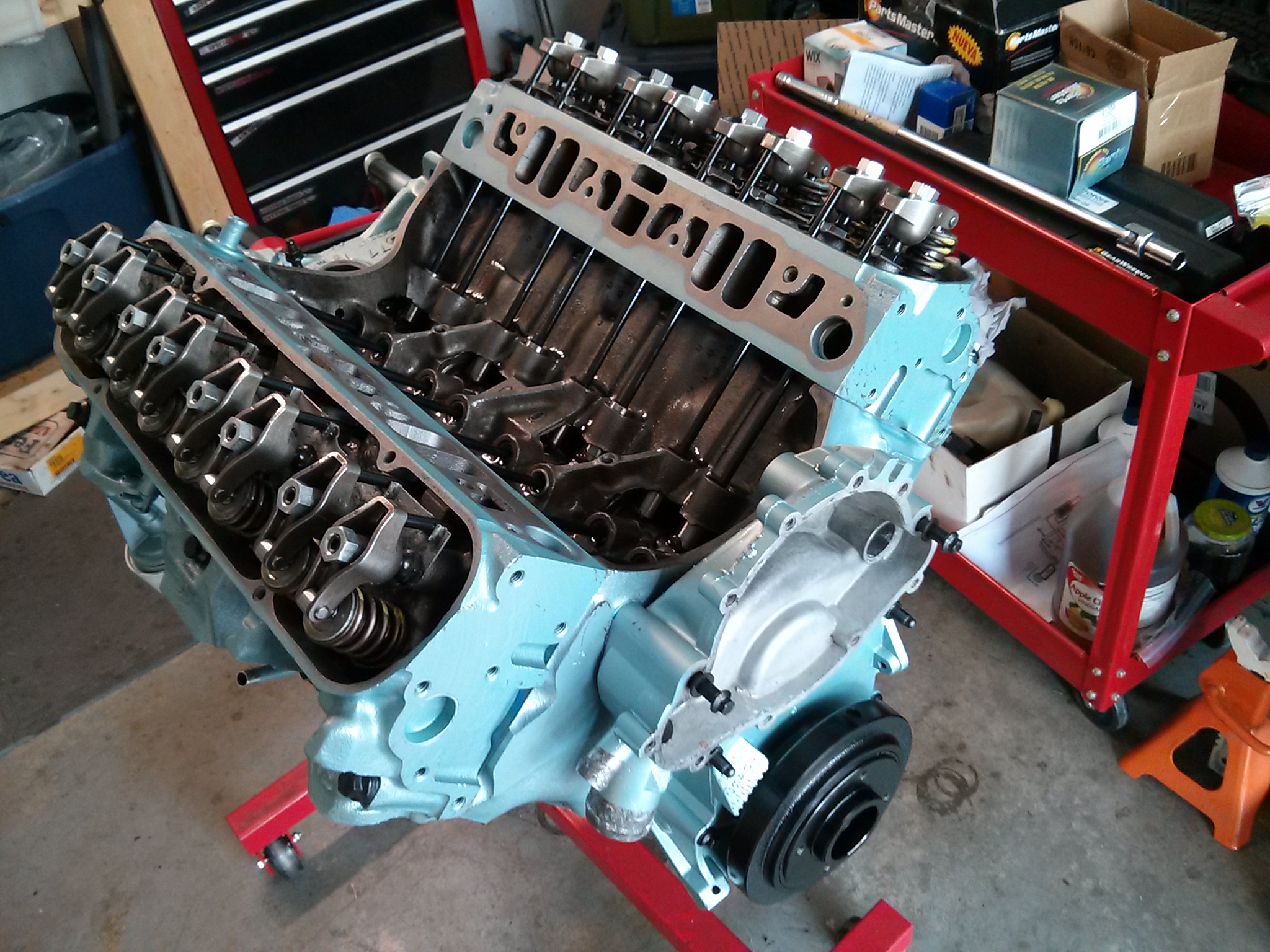

Assembling the remainder of the engine actually went smoothly, here are some pictures.
My buddy Joel came over to help me install the engine and transmission into the car, we got as far as the flywheel and ran into an issue. Not even 20 minutes into installing the motor and we ran into a roadblock. The TCI Flywheel I got had a sticker that said “this side toward engine”. No matter how we turned the flywheel, the bolt holes just never lined up. We tried flipping it over as well, but our assumption that the sticker was right led us to put the engine back on the engine stand. The following day I called up TCI. After describing them what happened, they did their own research, then called me back about an hour later suspecting the sticker was on the wrong side. I flipped it over and lined it up on the old factory flywheel and the holes did line up. Long story short, the sticker was on the wrong side. The other stickers were also on the wrong side, so they went ahead and replaced the flywheel for me. The replacement arrived the last wee of June, unfortunately with birthdays and 4th of July coming up, I will not get a chance to install it until after the holiday.

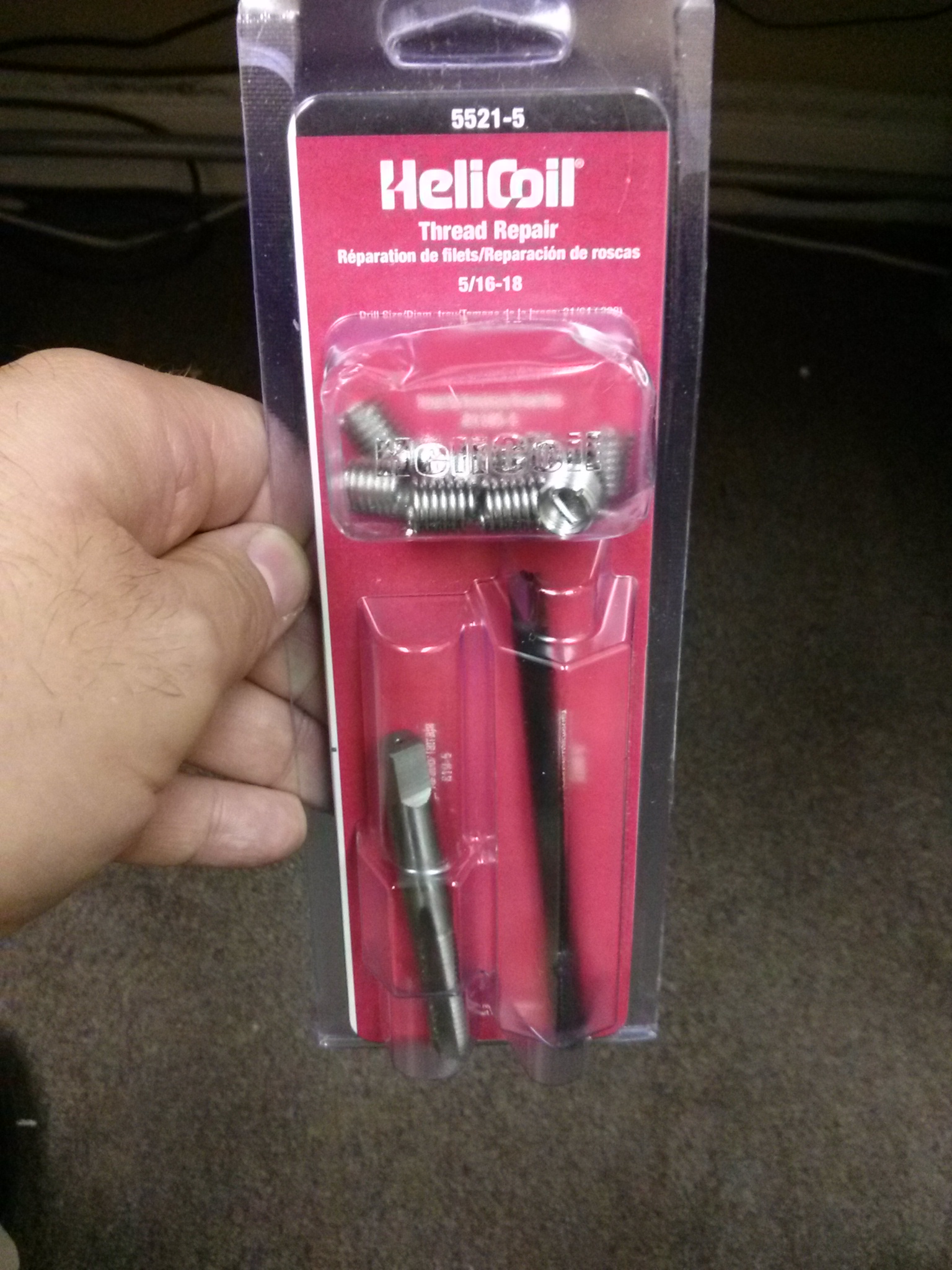

While waiting for the flywheel to arrive, I went ahead and installed a few other non critical engine parts like the fuel pump. While installing the fuel pump, I accidentally stripped the thread in the timing cover while bringing it to the recommended 25 ft/lbs. I had that feeling in my gut this seemed like too much torque and then instantly it just stripped out. This lead me to take the timing cover off and tap the hole with a Heli-coil tap and repair kit. The Heli-coil repair is quite easy actually, I just wish I had a drill press big enough to have drilled it with. My hand drill I just went in at a slight angle. Luckly his is just to hold the oil pump on and the angle is so minute I’m not worried about it. The lock washer has much more angle than this drill job. Anyway the engine is back together with the fuel pump installed ready for the flywheel.
Interesting, the “How to rebuild Pontiac V-8’s” book says to use 25 ft. lbs torque for the fuel pump, I found a couple other sources on the web that said to use 10 ft.lbs. After doing some research, the aluminum cannot handle more than 18 ft. lbs., and 15 ft lbs is what is used for the water pump that is also bolted to it. The service manual makes no recommendation on toque for the fuel pump, I assume because it is a non-critical engine part. The heli-coil instructions say that a minimum of 7.5 ft lbs is required for the fastener to hold, so I decided on 12 ft lbs, which is also what the oil pan uses into the aluminum timing cover. That is still less than 1/2 the torque from the “how to rebuild” book.
What’s Next
Get the engine and transmission installed! Everything but the drive shaft is ready for installation, so next week I will investigate getting the drive shaft rebalanced and getting the u-joints replaced. Even without the drive shat, I should be able to install the engine with the transmission very soon, pretty much just waiting until I can get a buddy to come over and help me (Installing an engine is not a 1-man job). Once the engine and transmission is in the car, I have a couple weeks of installing the drive shaft, exhaust system, radiator, coolant hoses, transmission lines, wiring and throttle cables. The plan now is to have the car ready to fire by the end of July.
